Security 85 (HS)

A high security horizontal sliding system in 2 or 3 pane options providing certified levels of blast mitigation and intruder resistance equivalent to protection levels offered by strong bars and grilles.

Recommended maximum frame sizes (mm)

  Height (mm) Width (mm)
2 Pane    2600      3000
3 Pane 2600 4500

Glazing Range

9.5 mm to 12 mm

Frame Finishes

Standard white (HIPCA semi-gloss). Any standard powder paint, wood grain or anodised finish to order. Secondary glazing products

Horizontal Sliding

Horizontal Sliding 2

Gallery

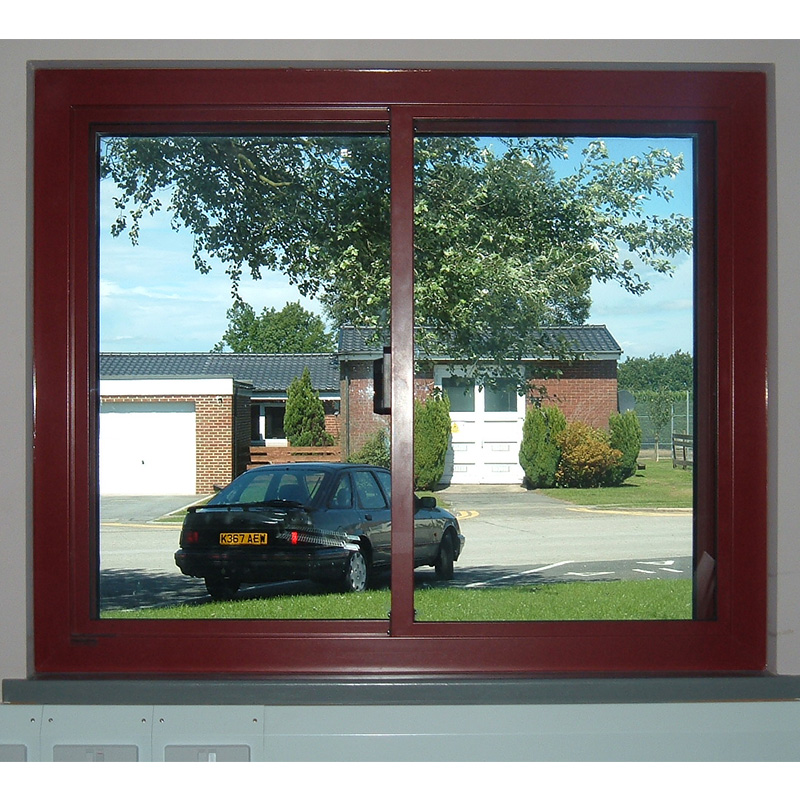

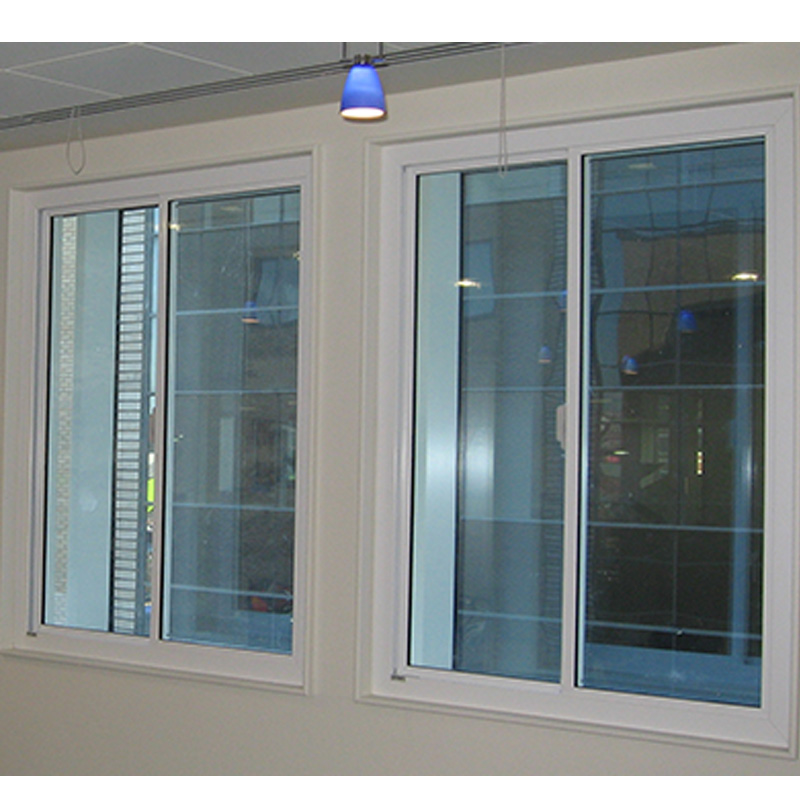

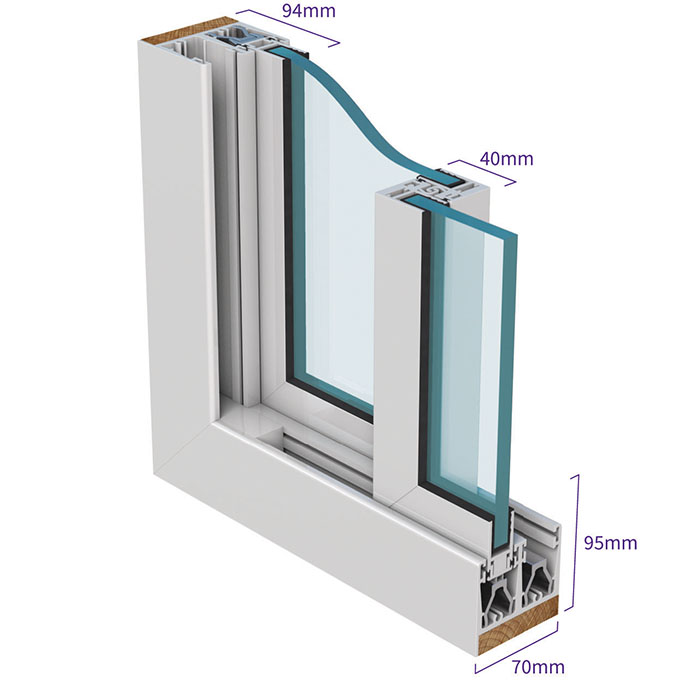

S85 Security HS Isometric Series 85 Horizontal Sliding Secondary Double Glazing Installation Horizontal Sliding Secondary Glazing Units Series 85

Styles available

Selectaglaze horizontal sliding styles 2 and 3 pane Horizontal sliding 3 pane centre style

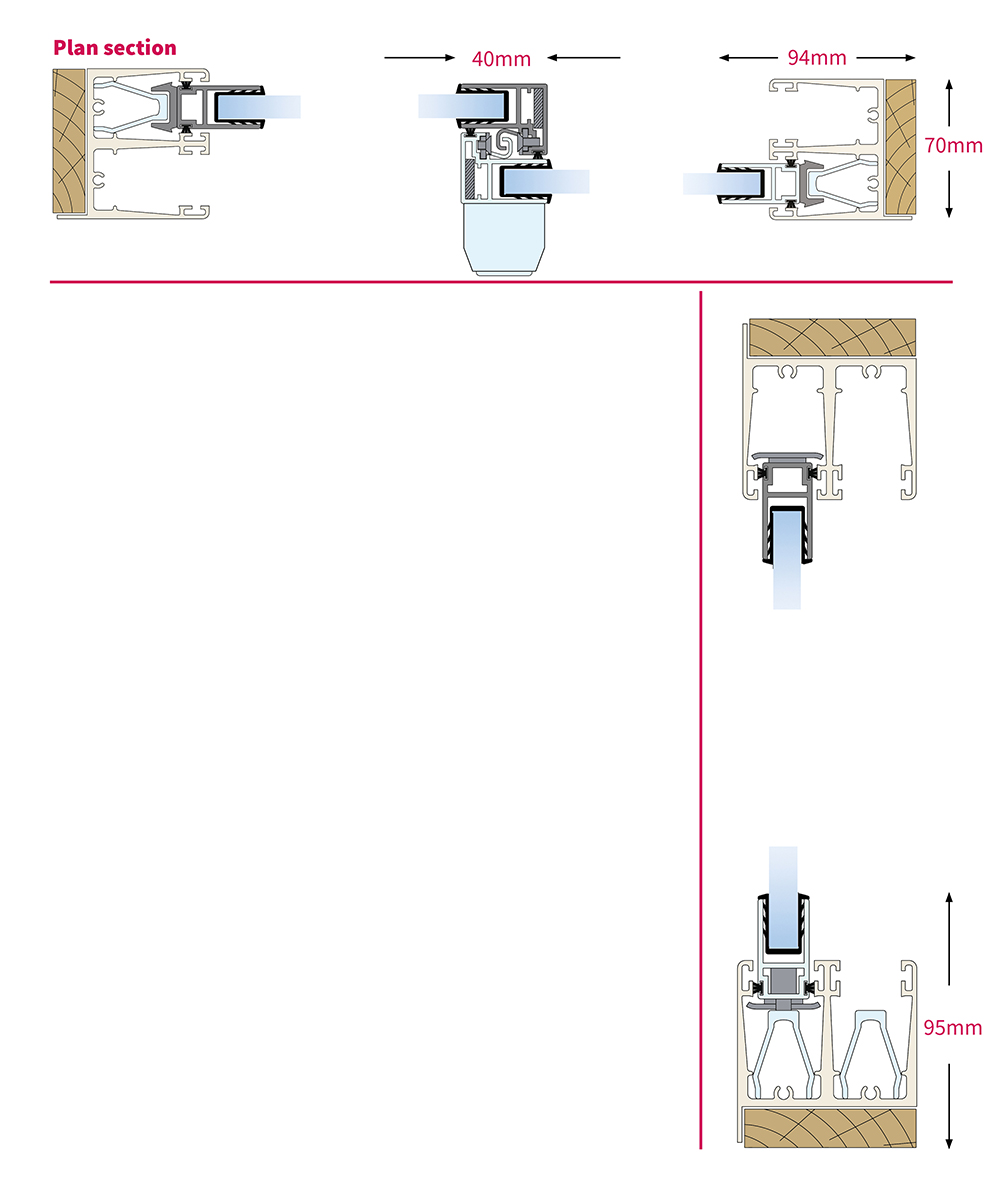

Section diagrams

Selectaglaze secondary glazing Series 85 security horizontal sliding section diagrams

Warmer

INSULATION (U-VALUE) CALCULATED IN COMBINATION WITH A PRIMARY WINDOW AT BRFC SAMPLE SIZE OF 1430 x 1230MM
GLASS METAL PRIMARY WINDOW TIMBER PRIMARY WINDOW
 9.5 - 12mm  3.00 W/m2K   2.70 W/m2K
 9.5 - 12mm low-E   1.97 W/m2K   1.84 W/m2K

Quieter

  NOISE INSULATION MEASURED IN COMBINATION WITH A PRIMARY WINDOW
GLASS 50MM CAVITY     100MM CAVITY     200MM CAVITY
 9.5mm  41 dB (Rw)  45 dB (Rw)  47 dB (Rw)
 11.3 - 12.04mm      42 dB (Rw)  46 dB (Rw)  48 dB (Rw)

Safer

  SECURITY PERFORMANCE (MAXIMUM ACHIEVABLE, CONTACT SELECTAGLAZE FOR SPECIFICATION REQUIREMENTS)
  TEST STANDARD
INTRUDER     LPS 1175 SR1
BLAST ISO 16933 EXV 25
BALLISTIC N/A
FIRE N/A
  • H10 Finger Pull
  • H24 Locking Actuator
ITEM FINISHES
H10 Finger Pull H24 Locking Actuator     Match frame colour
