Mid-range 15 (HS)

A more robust horizontal sliding system in 2 or 3 pane options that allows discrete treatment of larger windows and accepts thicker glass when higher noise insulation is needed.

Recommended maximum frame sizes (mm)

  Height (mm) Width (mm)
2 PANE 2400 3000
3 PANE 2400 4500

Glazing Range

4 mm to 8.8 mm

Frame Finishes

Standard white (HIPCA semi-gloss). Any standard powder paint, wood grain finish or anodised finish to order.

Horizontal Sliding

Horizontal Sliding 2

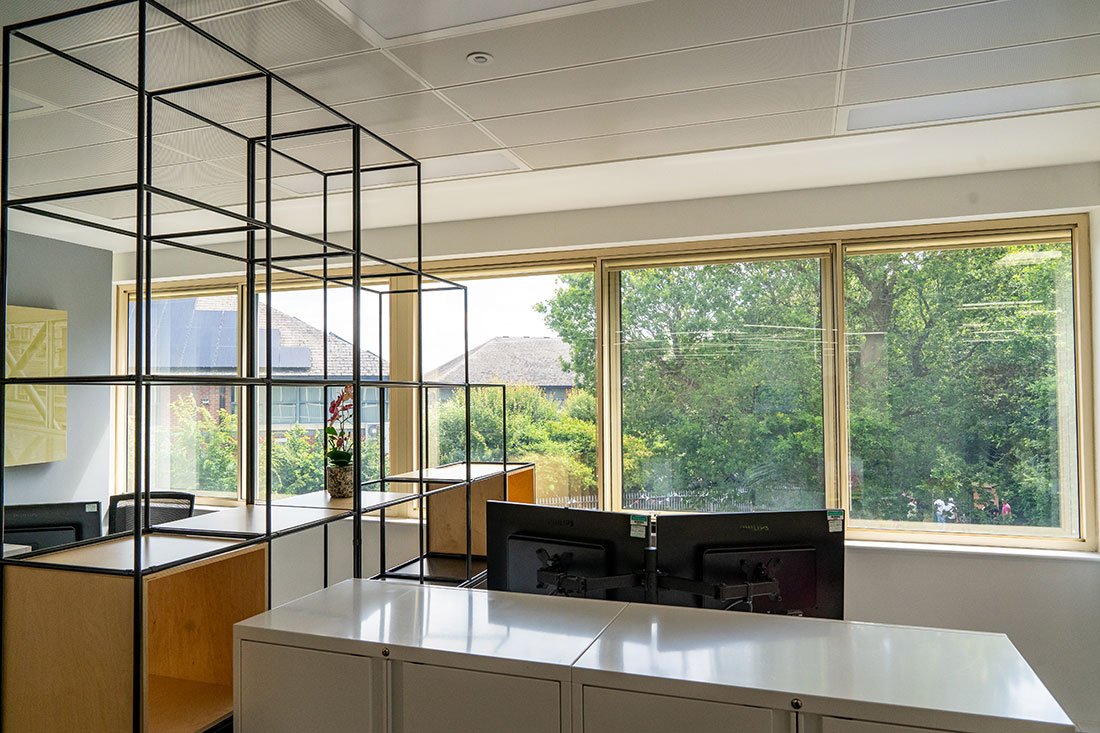

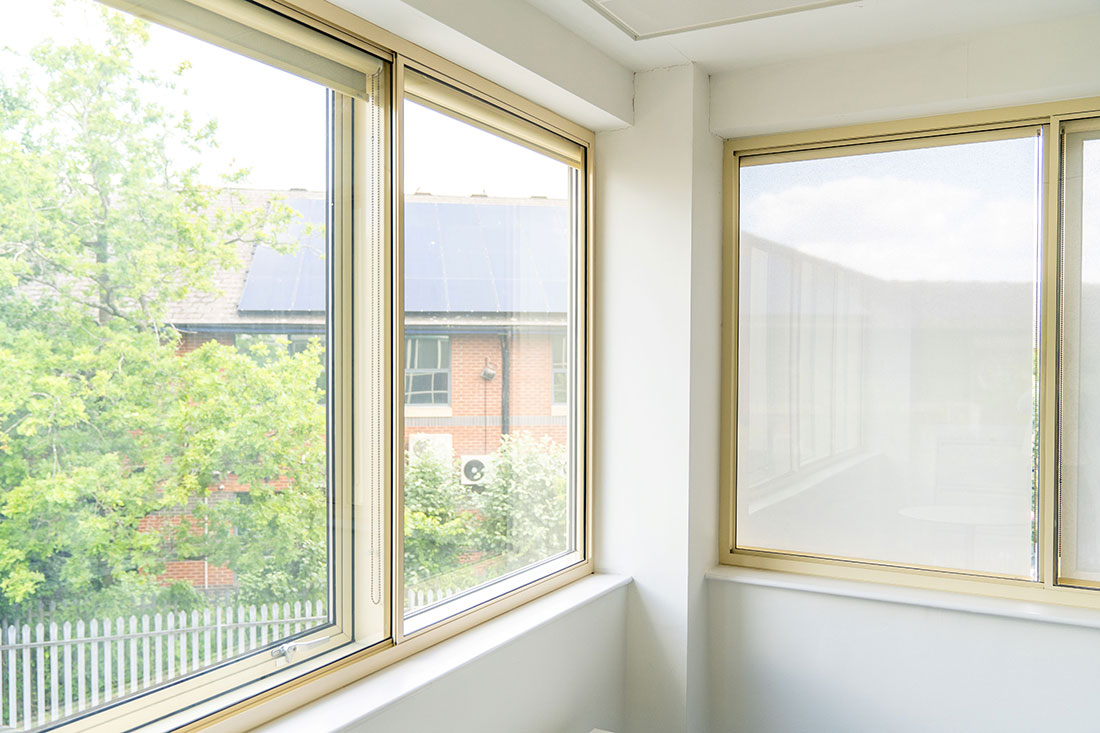

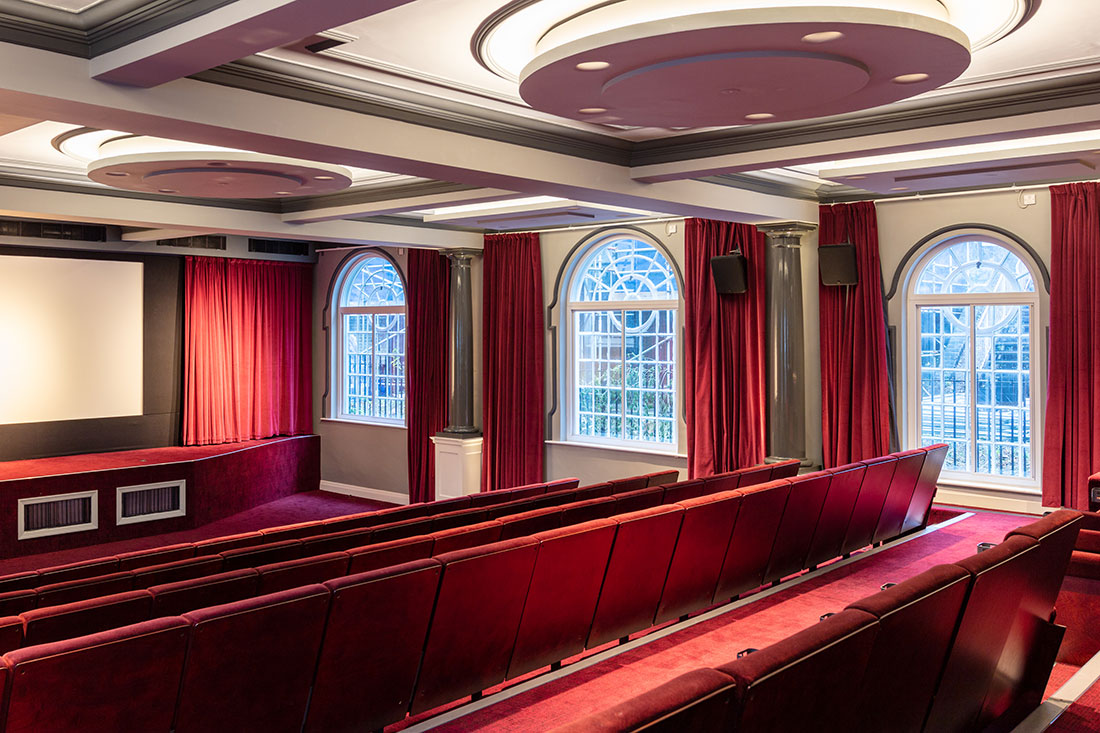

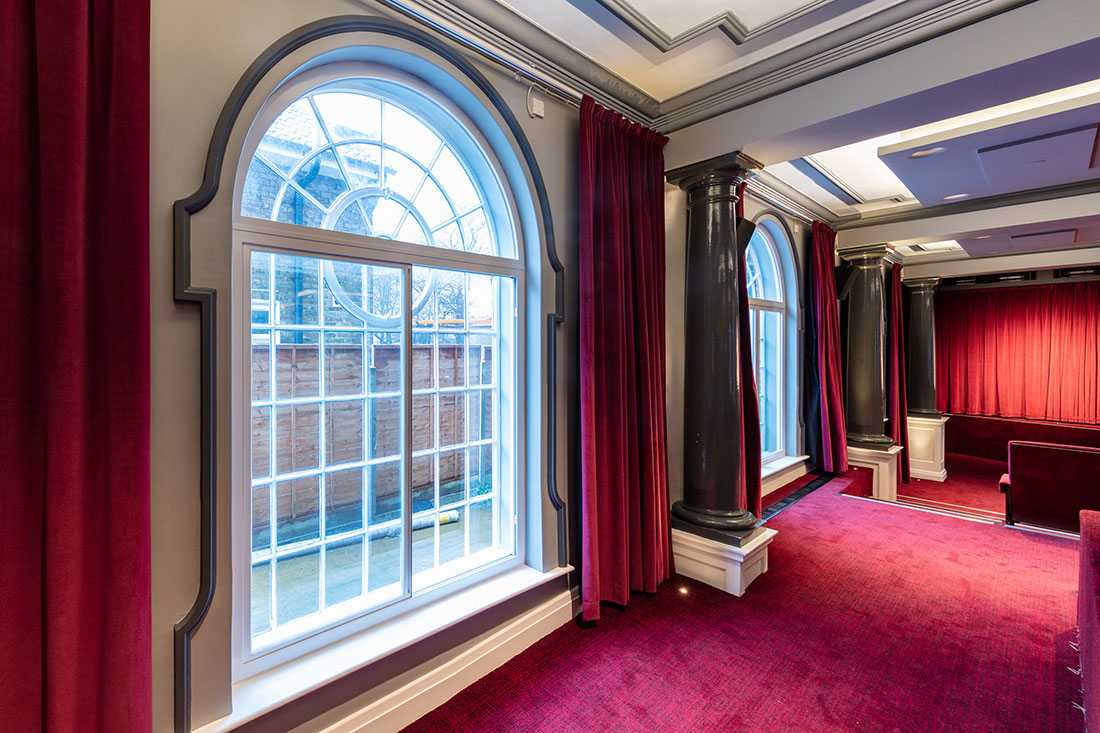

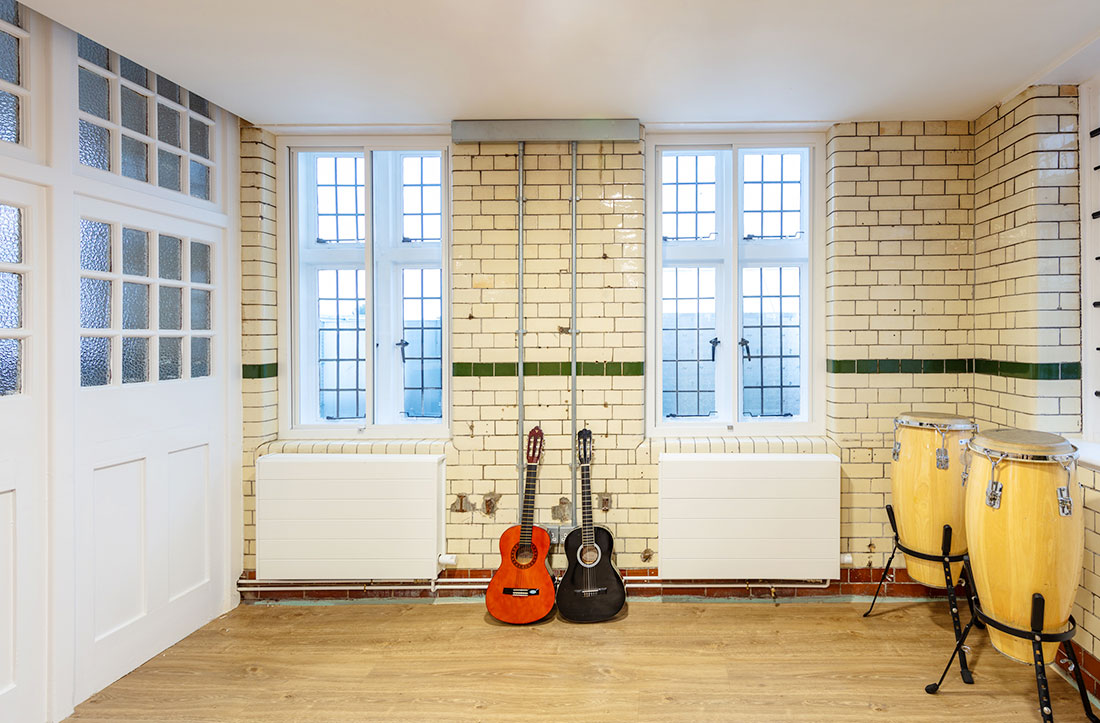

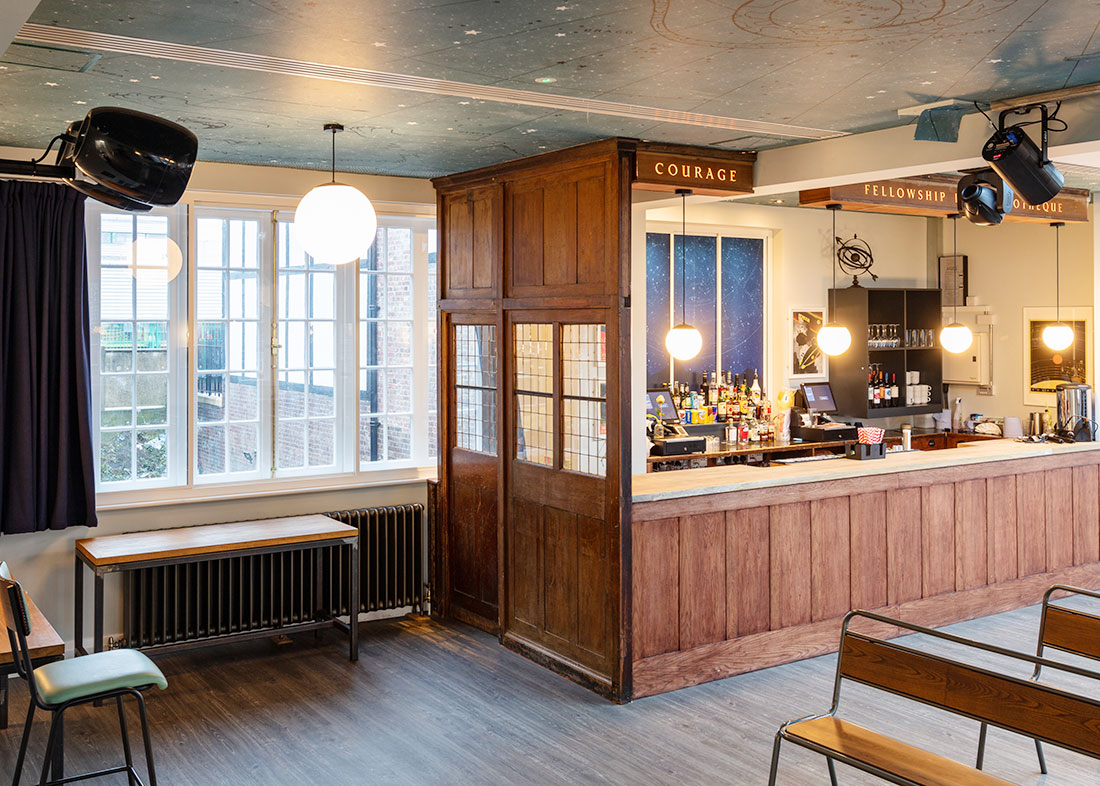

Gallery

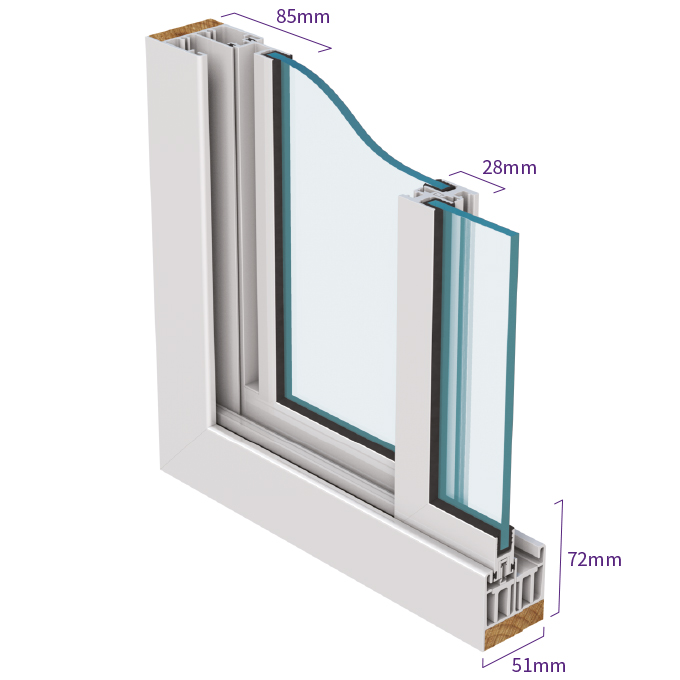

Series 15 Mid-Range Horizontal Sliding Isometric

Styles available

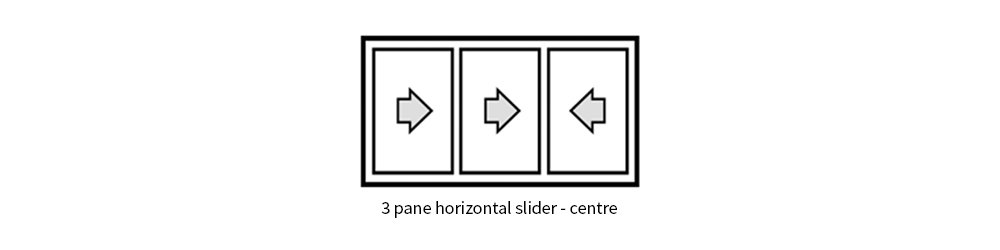

Selectaglaze horizontal sliding styles 2 and 3 pane Horizontal sliding 3 pane centre style

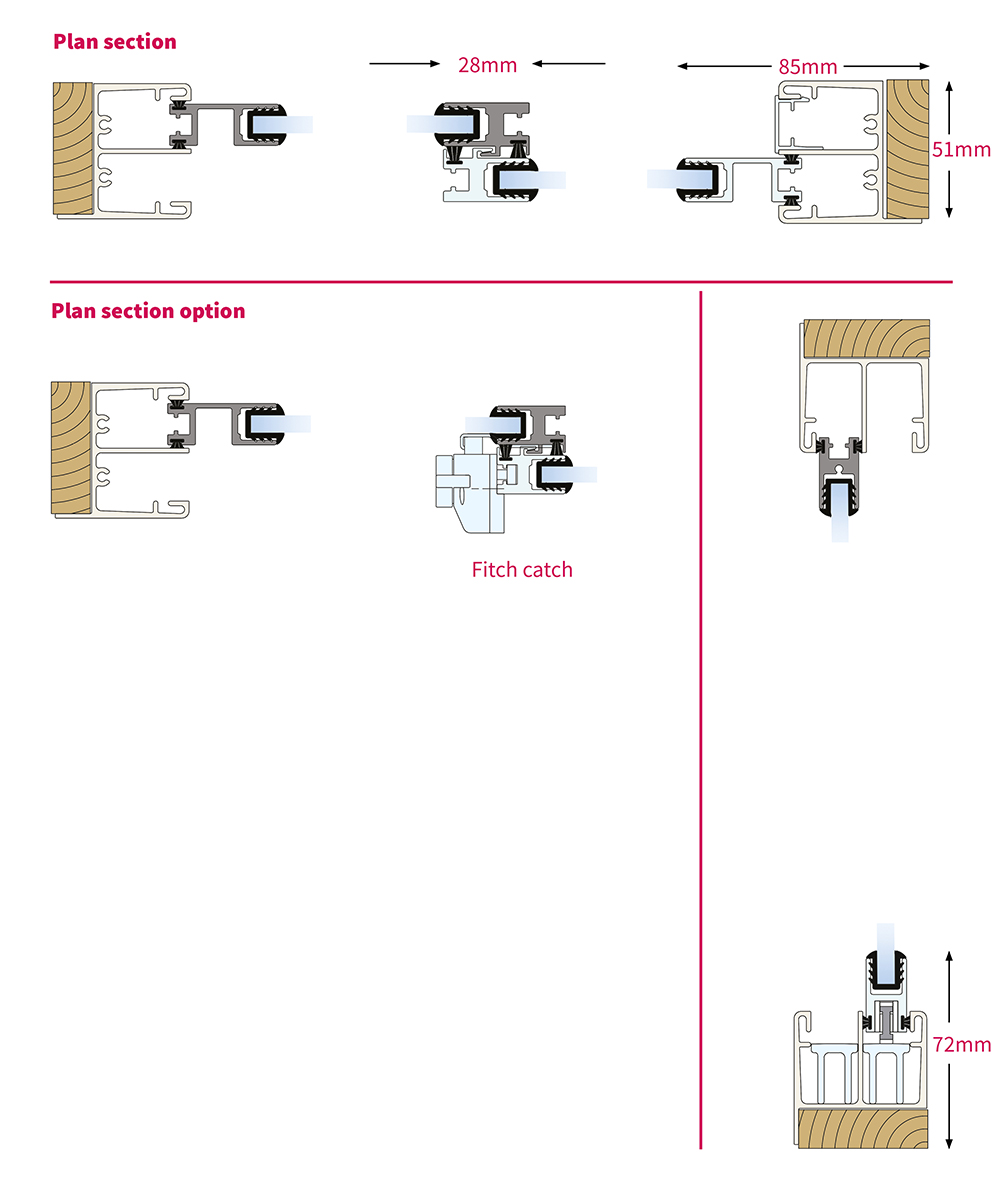

Section diagrams

Selectaglaze secondary glazing Series 15 mid-range horizontal slider section diagrams

Warmer

The Series 15 window has not yet been assessed for thermal insulation but it should compare well with the Series 10 system.

Quieter

The Series 15 window has not yet been laboratory sound tested but it should compare well with the Series 10 system.

Safer

SECURITY PERFORMANCE (MAXIMUM ACHIEVABLE, CONTACT SELECTAGLAZE FOR SPECIFICATION REQUIREMENTS)
  TEST STANDARD
INTRUDER     N/A
BLAST ISO 16933 EXV 33 (2HS only)
BALLISTIC N/A
FIRE N/A
  • H3 Recessed Finger Pull
  • L2 Fitch Catch (Lockable)
  • L24 Sliding Latch
ITEM FINISHES
H3 Recessed Finger Pull  Match frame colour
L2 Lockable Fitch Catch     White Black Gold Polished chrome Brushed Steel
L24 Sliding Latch Match frame colour

Looking for more?

To view the coupling guide and other documents available, please visit the technical downloads.

Go to technical downloads
