Slimline 20 (VS)

A vertical sliding unit operating on spring balances. Slim profiles make it suitable for treating traditional sash windows in heritage properties. The sashes contra slide to assist cleaning and a minimum frame to frame gap of 75mm is recommended to allow access to the outer window.

Recommended maximum frame sizes (mm), subject to balance capacity

Height (mm)  Width (mm)
3000 1400

Balance Capacity

Maximum area dictated by 20kg balance capacity per sash.

Glazing Range

4 mm to 6.8 mm

Frame Finishes

Standard white (HIPCA semi-gloss). Any standard powder paint, wood grain or anodised finish to order. Secondary glazing products

Vertical Sliding

Vertical Sliding Product

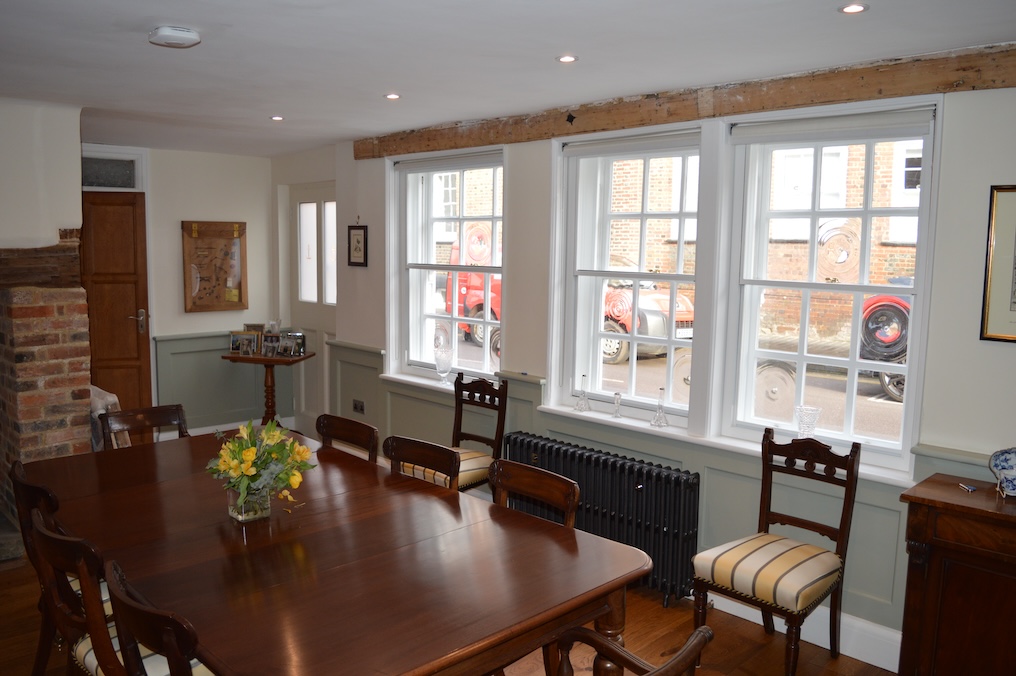

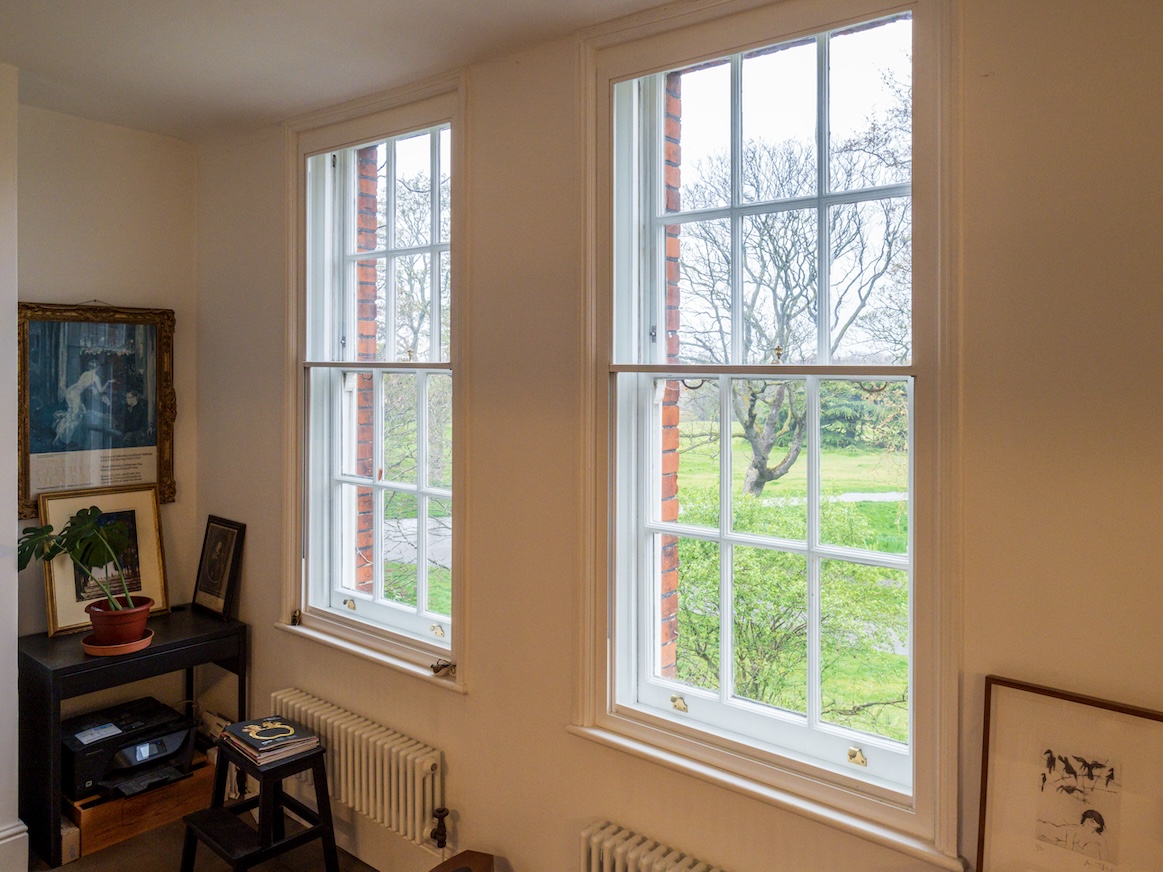

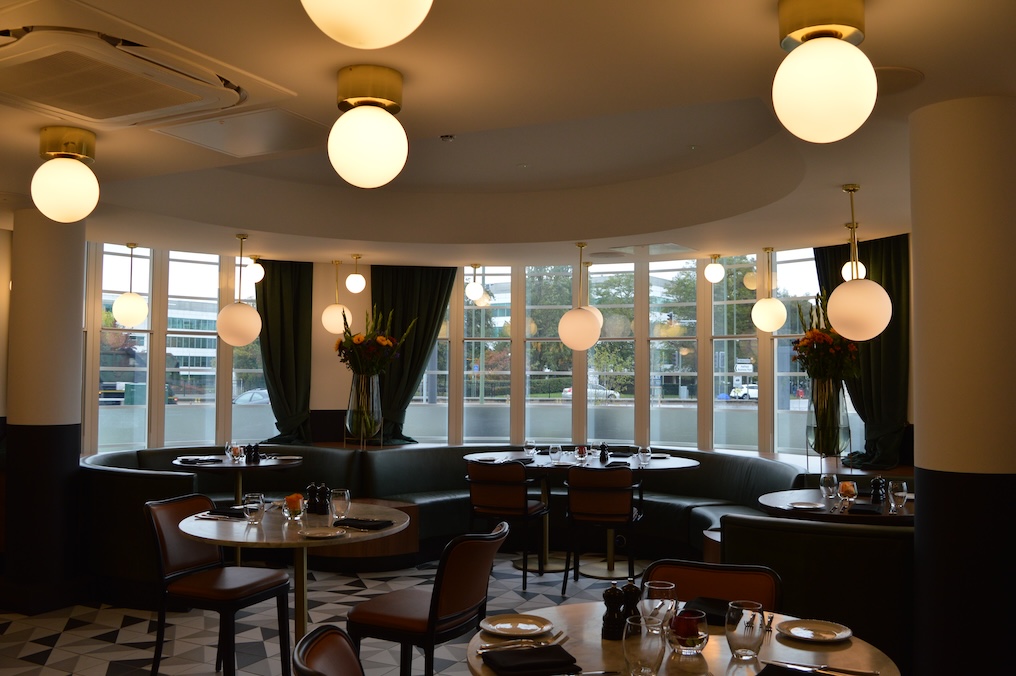

Gallery

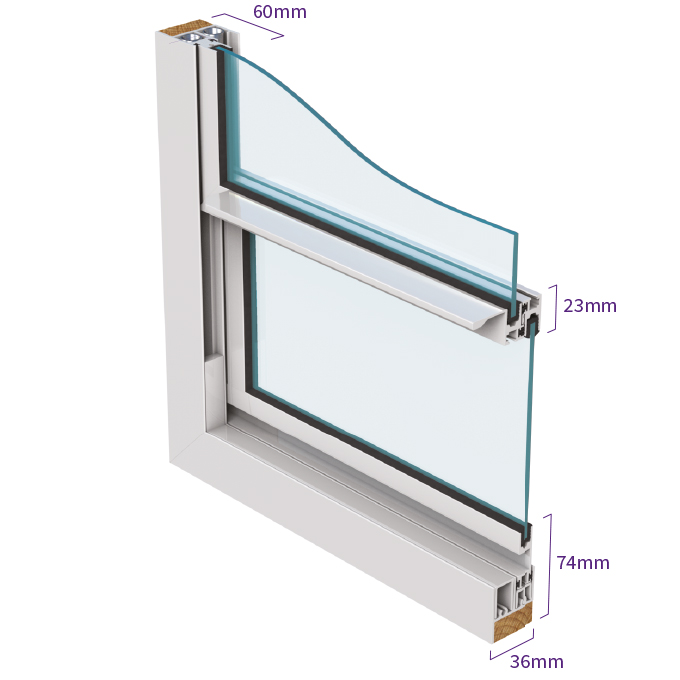

S20 Slimline VS Isometric

Styles available

Vertical sliding standard and arched head secondary glazing styles

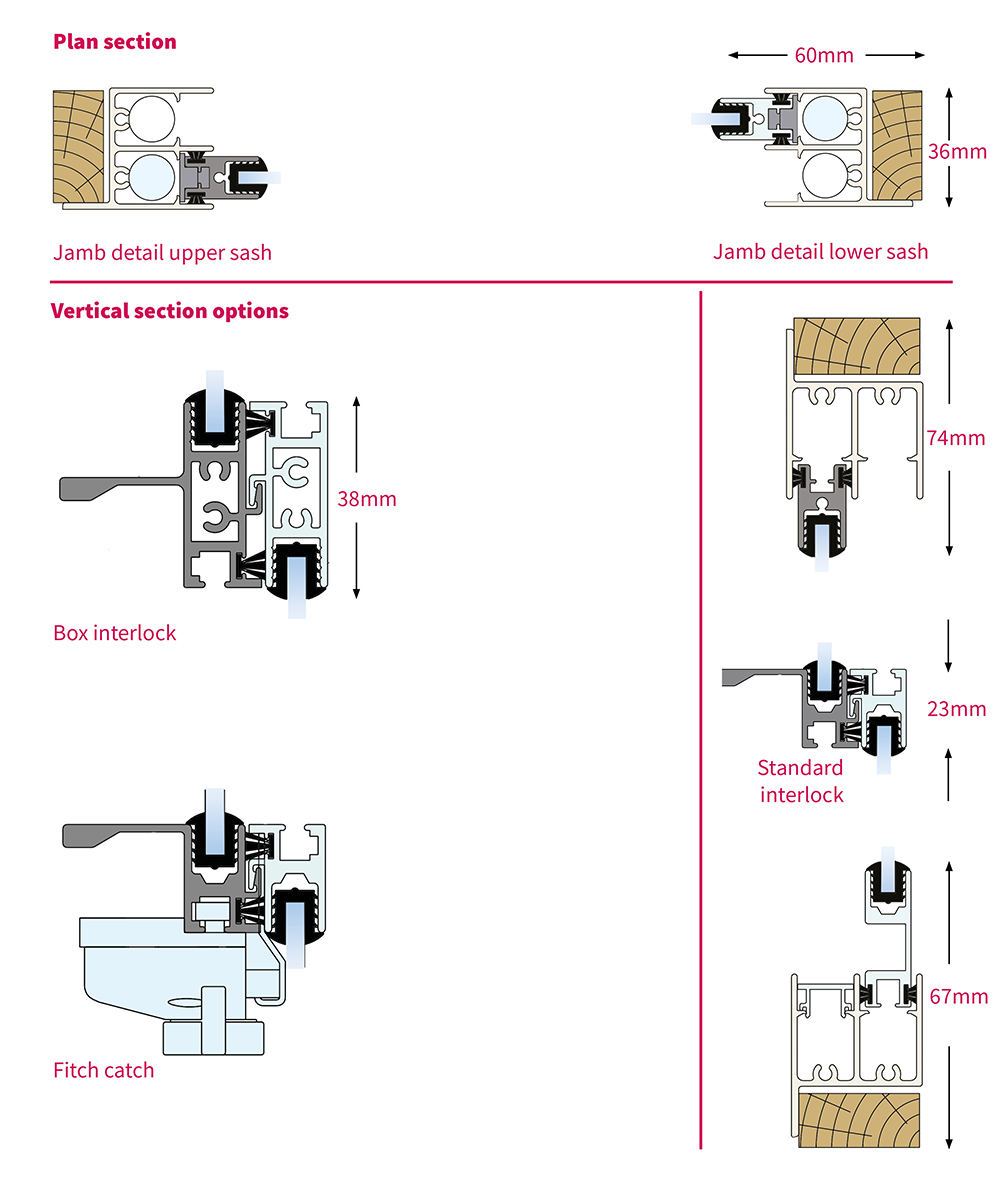

Section diagrams

Selectaglaze secondary glazing Series 20 slimline vertical sliding section diagrams

Warmer

INSLUATION (U-VALUE) CALCULATED IN COMBINATION WITH A PRIMARY WINDOW AT BRFC SAMPLE SIZE OF 1430 X 1230MM
GLASS METAL PRIMARY WINDOW TIMBER PRIMARY WINDOW
 4 - 6.8mm  2.90 W/m2K  2.62 W/m2K
 4 - 6.8mm low-E  1.93 W/m2K  1.80 W/m2K

Quieter

NOISE INSULATION MEASURED IN COMBINATION WITH A PRIMARY WINDOW
GLASS 50MM CAVITY 100MM CAVITY 200MM CAVITY
 4 - 6.4mm  39 dB (Rw)  43 dB (Rw)  45 dB (Rw)
 6.8mm  40 dB (Rw)  44 dB (Rw)  46 dB (Rw)

Safer

SECURITY PERFORMANCE (MAXIMUM ACHIEVABLE, CONTACT SELECTAGLAZE FOR SPECIFICATION REQUIREMENTS)
  TEST STANDARD
INTRUDER Non certified second barrier to entry
BLAST ISO 16933 EXV 45
BALLISTIC N/A
FIRE N/A
  • H3 Recessed Finger Pull
  • H17 Cranked D Handle
  • L2 Fitch Catch (Lockable)
  • L4 Plunge Lock
  • L13 Sliding Latch
ITEM FINISHES
H3 Recessed Finger Pull H17 Cranked D Handle  Match frame colour
L2 Fitch Catch (Lockable)        White Black Gold Polished chrome Brushed steel
L4 Plunge Lock Silver
L13 Sliding Latch Match frame colour

Looking for more?

To view the coupling guide and other documents available, please visit the technical downloads.

Go to technical downloads
